MPPT Charge Controller AADI3117B1 1-5KVA

"We are the energy saving oriented people who utilize solar energy & being used by innovating Into various solar products."

High Frequency Pure Sine Wave Solar Inverter with MPPT Charge Controller AADI3117B1 1-5KVA

High Frequency Pure Sine Wave Solar Inverter with MPPT Charge Controller AADI3117B1 1-5KVA

Off-Grid Solar Power Inverter built-in MPPT,AC/Solar input priority via LCD setting,Smart battery charger design,charge current and input voltage range optional.


Aadhi solar understands and evaluate the exact need from the customer end and give suggestion with relevant solar products.


Aadhi solar plans the execution of the renewal energy product to the customer end With reliable stringent product.

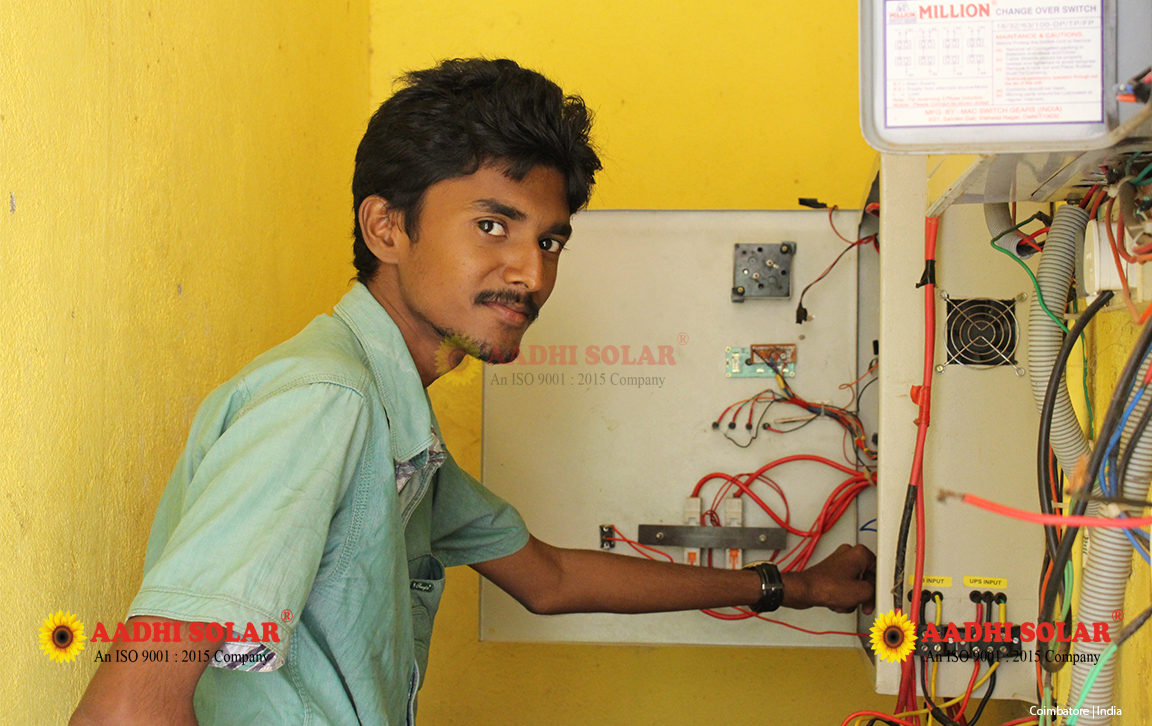

Aadhi solar creates the development in installing the solar product by the excellent trained engineers and technician.


Aadhi solar plays the major role in saving electricity by installing to more than one lakh customers.

Features of AADHI Solar Pump

Solar Pumps are specially designed to lift water forirrigation, horticulture farms, gardens, drinking and other similar applications. These solar powered Pumps are best alternatives for areas where there is no electricity or scarcity of power supply. Easy Photovoltaic’s solar Pump systems can be easily installed and requires minimum maintenance. We manufacture and supply various models of solar Pumps, solar submersible Pumps and the specially designed modules of the system can withstand extreme weather conditions such as storm, rain and dust and are impact resistant.

A solar PV Pumping system - commonly known as a solar pump - draws power from solar cell / modules to operate a motor pump set. Solar power pumps use specially developed and energy efficient motor pump sets to achieve higher discharge which off sets the high initial cost. A solar PV Pumping system consists of a number of solar PV modules connected in series - parallel combination to generate sufficient power to operate a motor pump. The solar PV modules are mounted on a metal frame in a manner that the mounting frame can be turned / tilted to ensure that the modules keep facing the sun throughout the day. The system does not have any storage battery since power generated is used directly then and there.

The SPV array converts the solar energy into electricity which is used for running the motor pump set. The pumping system can draw water from the open well / bore well or stream / pond or canal. The broad category of Solar Water Pump - Hand Pump that we manufacture and supply to our worldwide clients can be used manually without AC or DC support. This hand pump is useful in all areas. Water starved villages are particularly convenience by the pump. Water can be sourced through AC support in the night and even on rainy days where sunlight is negligible. During daytime, water can be sourced through DC solar inverter. Our range offers solutions to various areas of operation.

AADHI SOLAR provides a solar Pumping system, this is welcome alternative to fuel burning generatores or hand pumps.It consist of a DC/AC surface mounted/submersible/floating motor pump set, electronics if any, interconnect cables, a On-Off switch and a PV array mounted on a suitable structure with a provision of tracking.The whole system is simple, robust and absolutely maintenace free for year’s.Rigid mounting structure is employed to withstand high wind speeds.

  • Pure sine wave output
  • High frequency full bridge design .
  • Built-in MPPT solar charge controller
  • Selectable input voltage range for home appliances and personal computers
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function
  • Mains/solar output priority level for the customer to choose .
  • Mains/solar/ mains & solar charging three mode of priorities for the customer to choose.
  • Maximum Power point Tracking (MPPT)
  • Solar efficiency: 98%
  • Variable frequency drive (VF drive)
  • IGBT base power stage
  • PWM frequency – 20KHz
  • Pure sine wave three phase current to motor pump capacity: Up to 10HP
  • Solar panel capacity : Up to 10000Wp
  • Inverter O/P:440V AC p-p
Model                     SSP3117C 1000VA-5000VA
Selectable Volatage Range170-180VAC(For Personal Computers)
Frequency90-280VAC(For Home Appliances)
AC Voltage Regulation(Batt. Mode) 230VAC±5%
Surge Power 2000400060006000800010000
Transfer Time10ms(For Personal Computers) 20ma(For Home Appliances)
WaveformPure Sine Wave
Battery&AC Charger
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection31VDC62VDC
Maximum Charge Current20A25A
Solar Charger
MPPT Range @ Operating Voltage25VDC~58VDC60VDC~110VDC
maximum PV Array Open Circuit Voltage75VDC/150VDC137VDC/150VDC
Maximum Charging Current 40A/60A60A
Maximum Effciency>96%
Standdby Power Consumption2W
Dimension, DXWXH(mm)350*130*340380*130*465
Net Weight(kgs)
Operating Envirpnment
Humidity5% to 95% Relative Humidity*(Non-condensing)
Operating Temperature0℃-55℃
Storage Temperature-15℃-60℃
